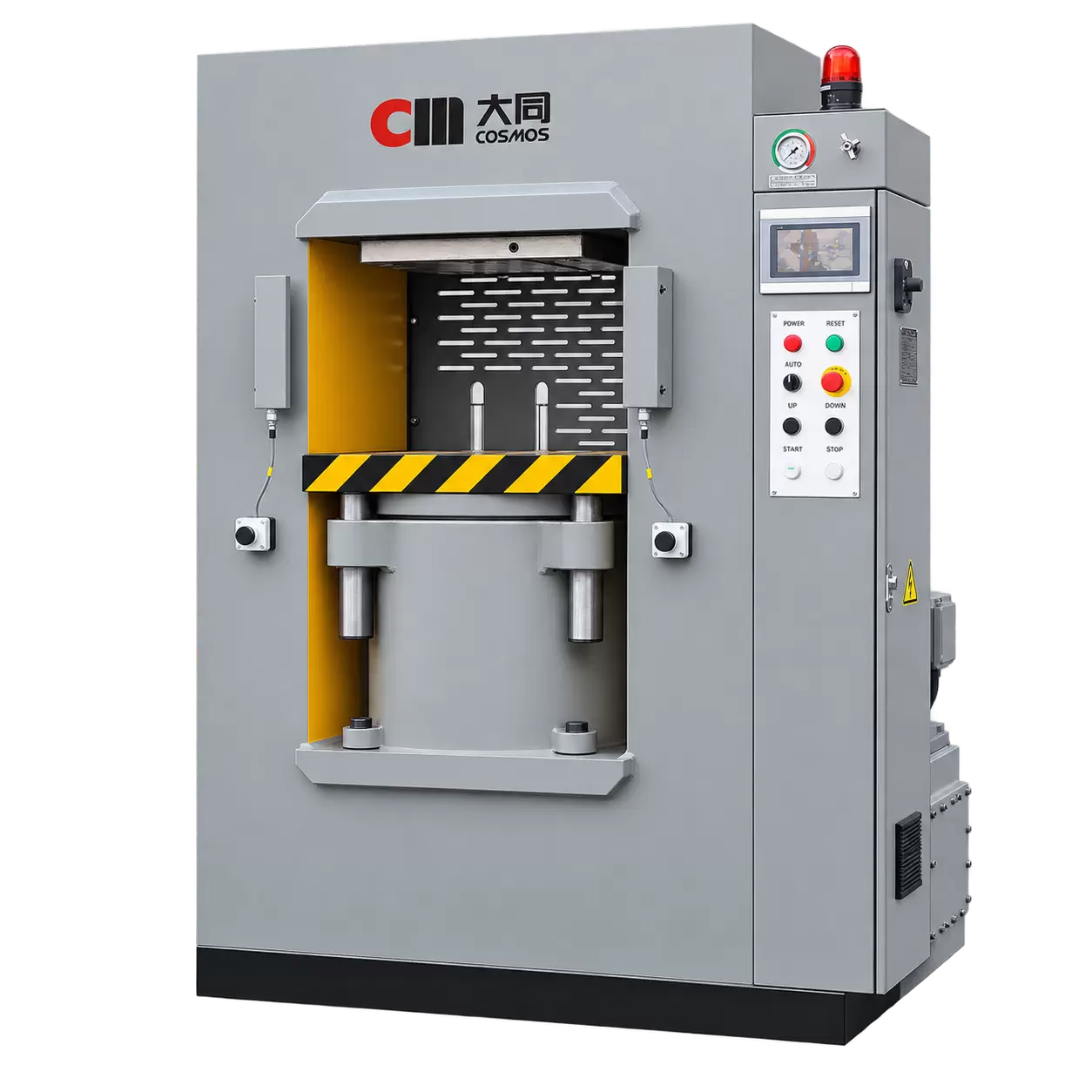

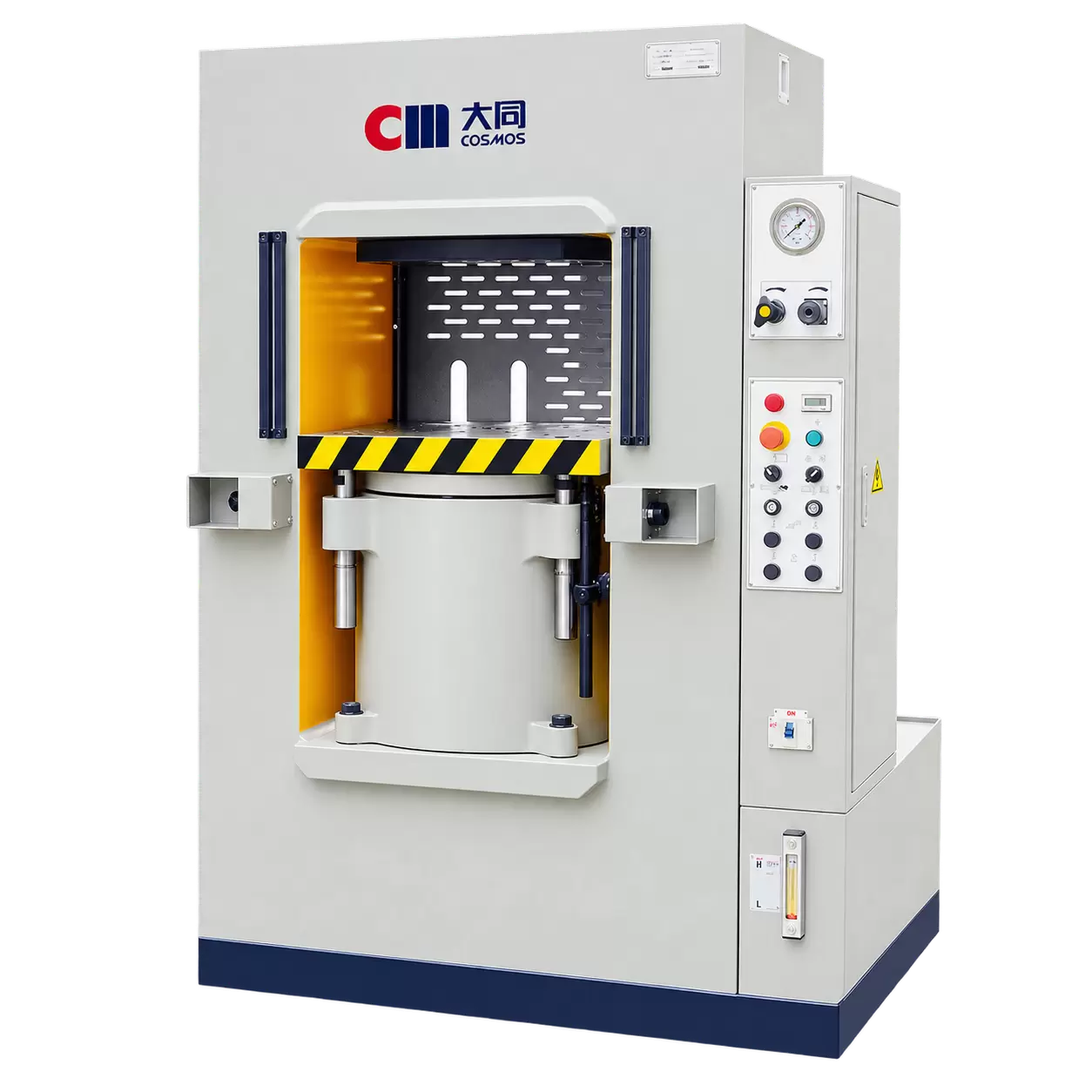

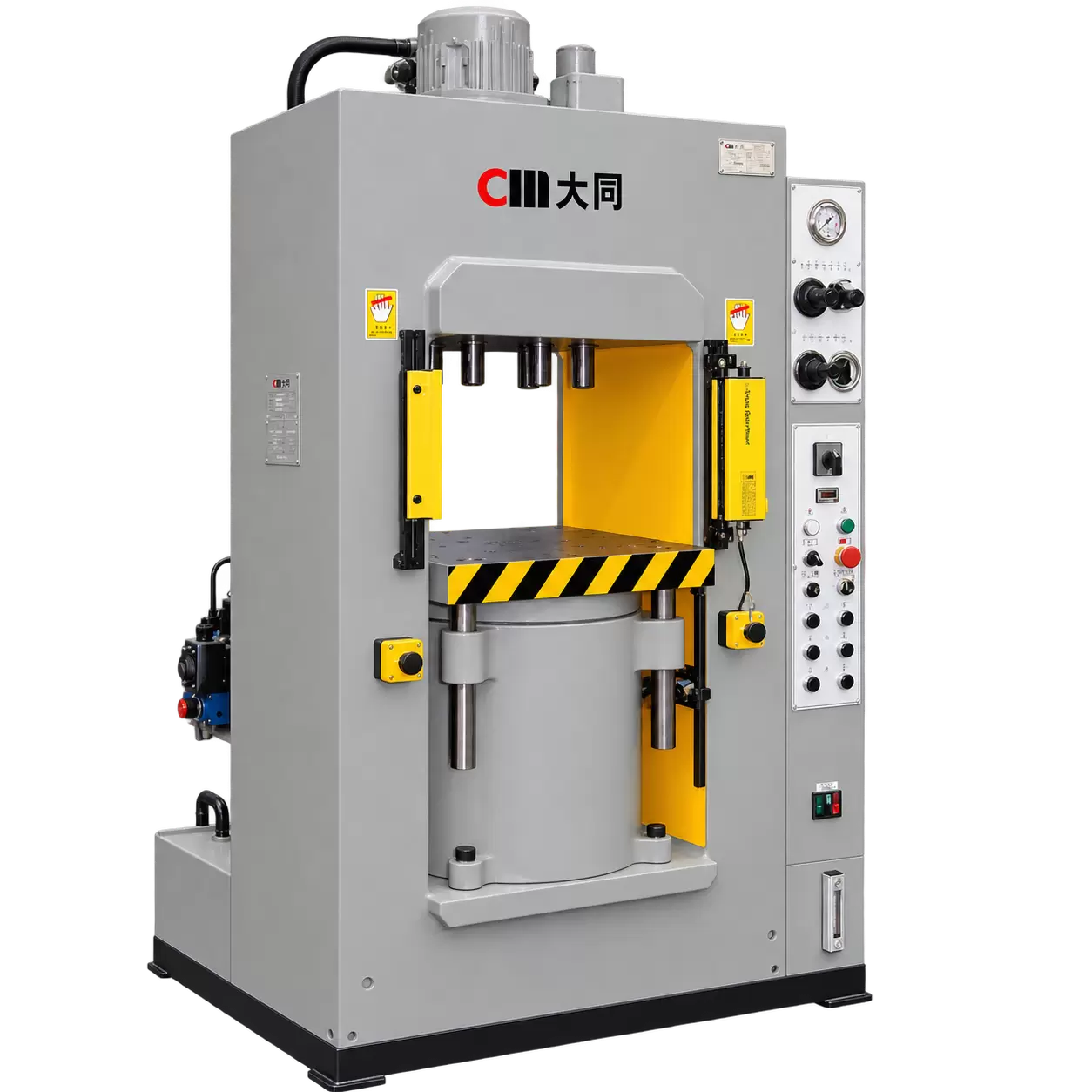

CMHe-E1 Series Up-Stroke Frame-Type Hydraulic Press

SEND INQUIRY NOW >

APPLICATION

Stamping, forming, shallow drawing, die spotting, molding and blanking of metallic and non-metallic material

Forming of watch case, watch band, spectacle parts, photo frame, tableware, metal ornaments, lock parts, auto part and hardware etc

FEATURES

Welded frame body: Strong welded frame body made of high quality integral steel plate ensures high rigidity;

Parameter adjustment: Pressing pressure, stroke of moving bolster and hold pressure time can be adjusted according different pressing technology;

Ejector options: Upward ejector, downward ejector and composite ejectors can be selected in different models in order to different pressing technology;

Oil‑tank design: Oil tank fixed at bottom of machine, ease for clean the tank and change the hydraulic oil;

TECHNICAL PARAMETER TABLE

ITEM		UNIT	CMHe-200E1	CMHe-300E1	CMHe-500E1	CMHe-1000E1	CMHe-1500E1	CMHe-2000E1
Nominal capacity		Ton	200	300	500	1000	1500	2000
Maximum system pressure		MPa	22	24	25	25	27	25
Maximum stroke		mm	150	150	150	150	150	150
Open height		mm	380	380	450	500	550	800
Height of moving bolster surface		mm	1050	1080	1180	1365	1600	1895
Speed of moving bolster	Approaching	mm/s	120	120	110	100	80	80
	Pressing	mm/s	2~10	1~7	1~5	1~4	1~2.5	1~2
	Returning	mm/s	130	130	110	100	90	90
Effective area of moving bolster	Left to right	mm	520	580	710	900	1100	1400
Effective area of moving bolster	Front to back	mm	500	540	640	880	1050	1380
Overall dimensions (Approx.)	Length	mm	1350	1410	1650	1850	2300	2700
	Width	mm	1600	1600	1650	2000	2450	2650
	Height	mm	1840	1895	2080	2500	2950	3745
Servo motor power		KW	16	16	16	29	39	39
Machine weight (Approx.)		Kgs	2400	3300	5500	13000	20000	40000
Ejector nominal capacity		Ton	2	2	5	10	10	10
Ejector stroke		mm	15	15	15	20	20	20
