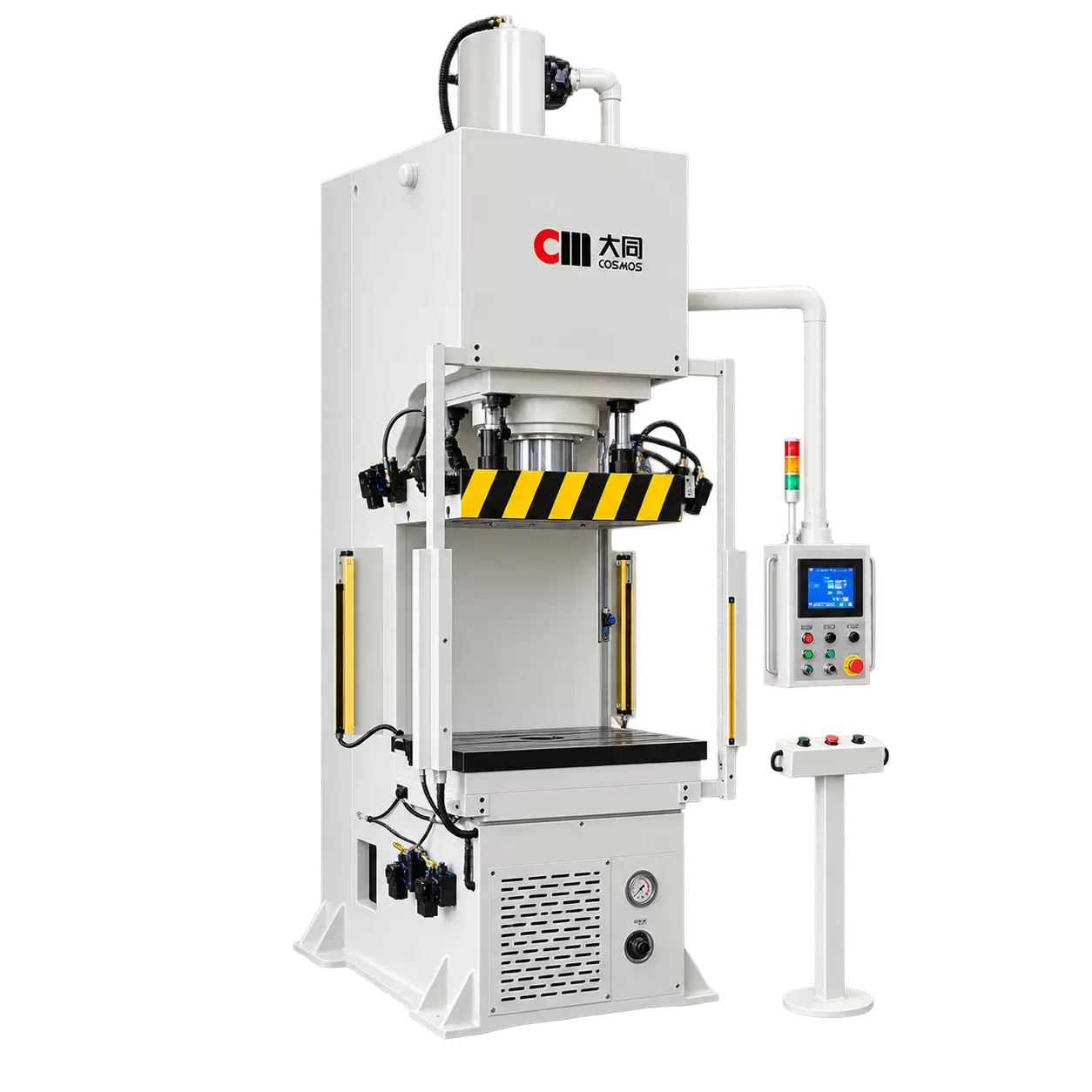

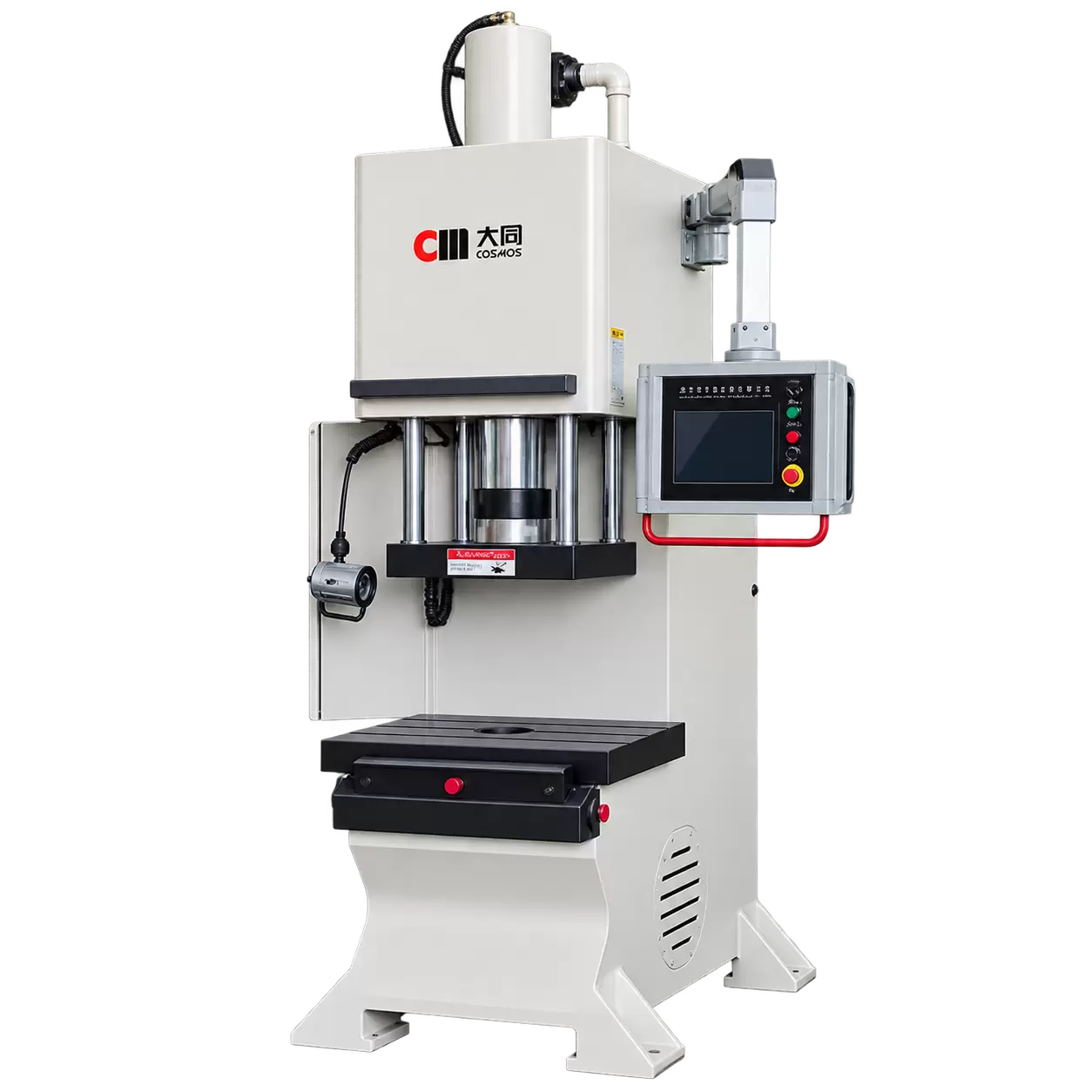

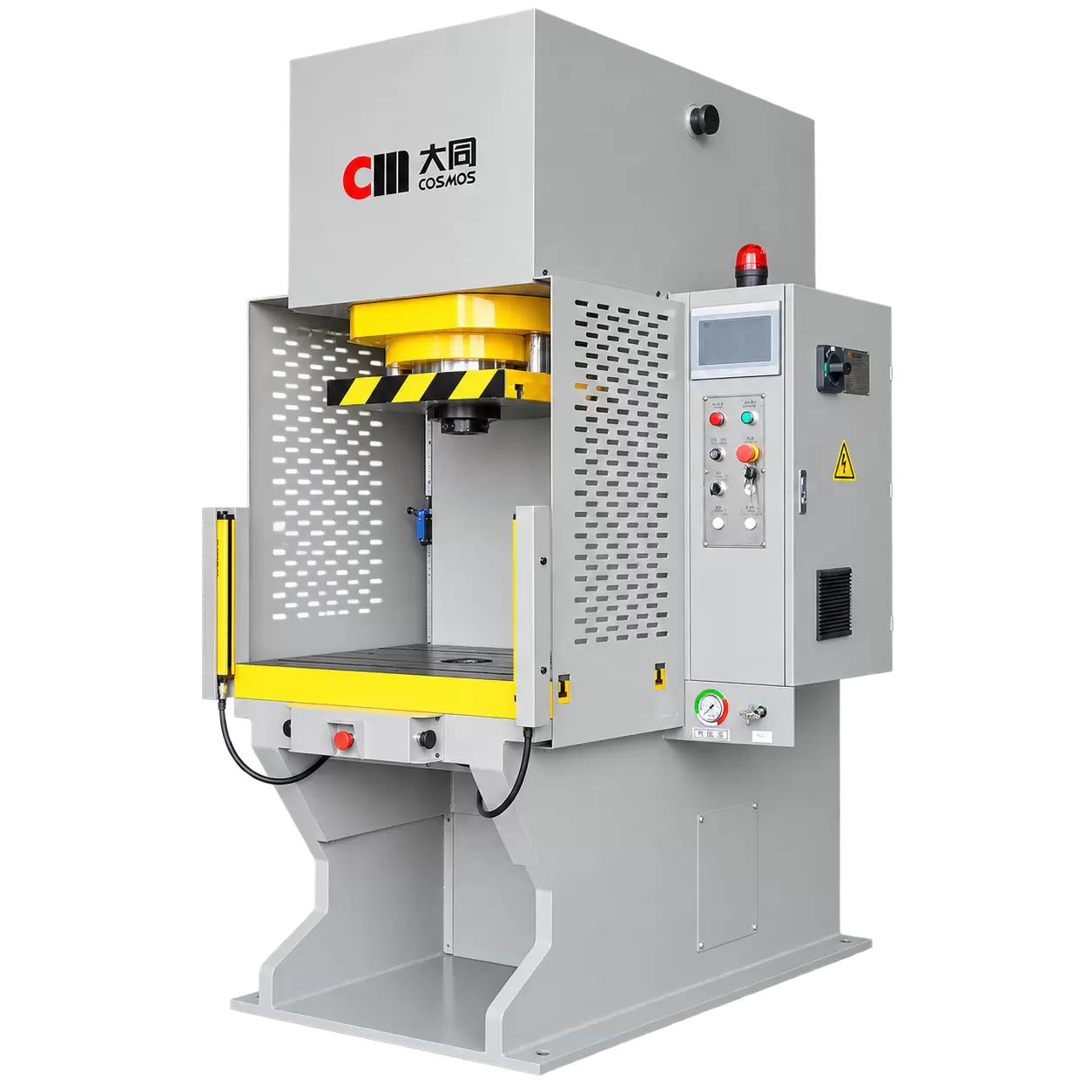

CMHC Series C-Frame Hydraulic Press

SEND INQUIRY NOW >

APPLICATION

Stamping, forming, shallow drawing and pressing assembly of metallic and non-metallic material

Forming of spectacles, lock and metal hardware, pressing assembly of electronic connectors, electric components, rotor and stator of motor etc

FEATURES

Booster‑cylinder efficiency: Fast approaching and returning speeds by booster cylinder allow high efficient production;

Stroke position setting: Position monitoring by linear scale, ease to set the moving length of approaching and pressing stroke;

Pressure adjustment: Pressing pressure can be adjusted according to different pressing technology;

Open‑type frame structure: Strong welded open type frame structure made of high quality integral steel plate, ensures high rigidity and saves working space;

Control configuration: (Standard with relay control, PLC control is option).

TECHNICAL PARAMETER TABLE

ITEM		UNIT	CMHC‑05	CMHC‑10	CMHC‑15	CMHC‑25	CMHC‑50	CMHC‑75	CMHC‑100	CMHC‑120	CMHC‑160	CMHC‑200
Nominal capacity		ton	5	10	15	25	50	75	100	120	160	200
Maximum system pressure		MPa	13	12	15	16	16	16	18	22.5	24	25
Maximum stroke		mm	180	200	200	200	200	300	300	300	300	300
Open height		mm	350	400	400	450	450	500	550	550	620	750
Depth of throat		mm	150	175	175	200	225	275	325	325	330	355
Approaching speed		mm/s	300	300	300	300	250	210	200	200	190	160
Pressing speed		mm/s	50	35	25	22	20	15	15	15	12	12
Returning speed		mm/s	260	350	300	180	200	180	200	200	120	160
Size of tooling holder hole		mm	φ30x55	φ30x55	φ40x60	φ40x60	φ50x70	φ60x75	φ60x75	—	—	—
Moving bolster size L x W		mm	—	—	—	—	400x280	480x350	520x400	520x400	580x400	860x600
Fixed bolster size L x W		mm	440x300	450x350	450x350	460x400	550x450	650x550	800x650	800x650	800x650	1000x700
Height of fixed bolster surface		mm	850	850	850	850	850	850	850	850	860	875
Overall dimensions (Approx.)	Length	mm	760	800	800	820	900	1030	1157	1157	1210	1400
	Width	mm	880	940	1000	1100	1230	1440	1600	1600	1770	2015
	Height	mm	1770	1880	1900	2020	2100	2330	2390	2390	2620	3070
Motor power		KW	2.2	3	4	5.5	7.5	11	15	15	18.5	30
Machine weight (Approx.)		Kgs	950	1020	1120	1280	2250	3250	4400	5000	7200	14000
